智在科技自2017年以來,以”智慧無所不在”為目標。
致力於軟體開發整合方案以提升客戶的生產力。
在軟體方面, 效能、穩定性與便易性是我們撰寫程式的準則。
為達到各種不同的多元化要求,以跨平台為考量,我們運用 多種程式語言開發軟體,如C#、.NET、.NET core、WPF, 各式資料庫、Web 應用程式、三菱PLC、Omron PLC、 Mobile App …等來達到客戶的多樣性需求。
智在科技有豐富的TFT-LCD及PCB產業經驗,熟悉工廠各項 應用場景,以協助客戶解決各式各樣問題,共創最大的利益。

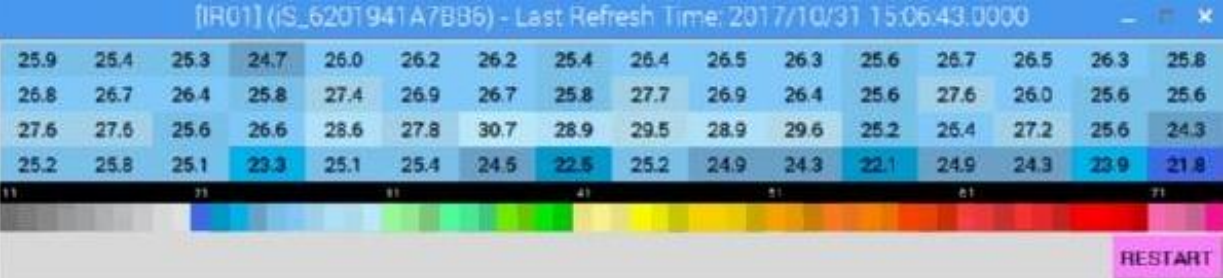

Function: 16 * 4紅外線矩陣溫度感測器
規格:
採取16*4 IR Array Sensor
FOV: 120∘* 25∘
周圍溫度Sensor Range: -40℃ ~ 85 ℃
目標溫度Sensor Range: -50 ℃ ~ 300 ℃
工作溫度Range: -40 ℃ ~ 125 ℃
支援無線802.11 b/g/n 標準
支援MQTT Protocol + Jason
尺寸:
工作電壓: DC 5V

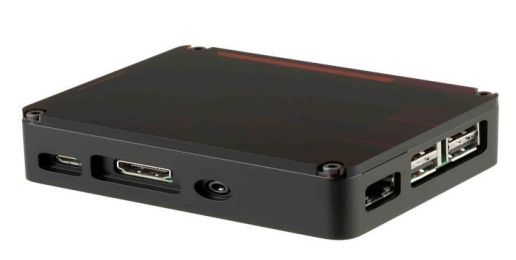

Function:MQTT Protocol內容轉換為上層SECS II Protocol
規格:
1.4GHz Quad-Core ARM Cortex-A53 (64Bit)
RAM: 1GB LPDDR2
支援無線802.11 b/g/n 標準
1 RJ45 1000M Ethernet
支援MQTT Protocol + Jason & SECS II Protocol
尺寸:
支援MQTT Protocol + Jason
工作電壓: 5V
Function: 讀取三菱PLC & Bluetooth內容轉換為上層MQTT Protocol
規格:
1.4GHz Quad-Core ARM Cortex-A53 (64Bit)
RAM: 1GB LPDDR2
支援無線802.11 b/g/n 標準
1 RJ45 1000M Ethernet
支援讀取及寫入三菱PLC (By Ethernet)及Bluetooth 傳輸資料, 並以MQTT 方式 上傳至Host
尺寸:
工作電壓: 5V
Function: Support SECSII/HSMS Protocol
Spec: 符合SEMI Standard E5/E30/E37通訊協定
EAP: Equipment Automation Program Server
Function:
Support SECSII/HSMS Protocol
Support IBM MQ message Protocol
Support 三菱、Omron PLC message Protocol
機台自動化軟體開發設計,可連接機台端不同Protocol的串接
可提供軟體代工及客制化需求
Equipment Engineering Data Collection Adapter
Function:
Support SECSII/GEM S2F23/S6F1 Data Collection
Support 三菱、Omron PLC message Protocol
Support to read Equipment log or CSV file by regular expression
Support to read Equipment Data by PLC or OPC server
Get the engineer data and manufacture data to Host by SECSII, MQTT, file or IBM MQ
可提供軟體客制化需求
Factory equipment automation related software developing & modification, ex: PLC, CIM PC, BC(Block Controller), …etc
Function:
To modify the equipment automation software
To develop the software for equipment automation
可提供軟體客制化需求
Factory equipment automation related software developing & modification, ex: PLC, CIM PC, Block PC …etc
Function:

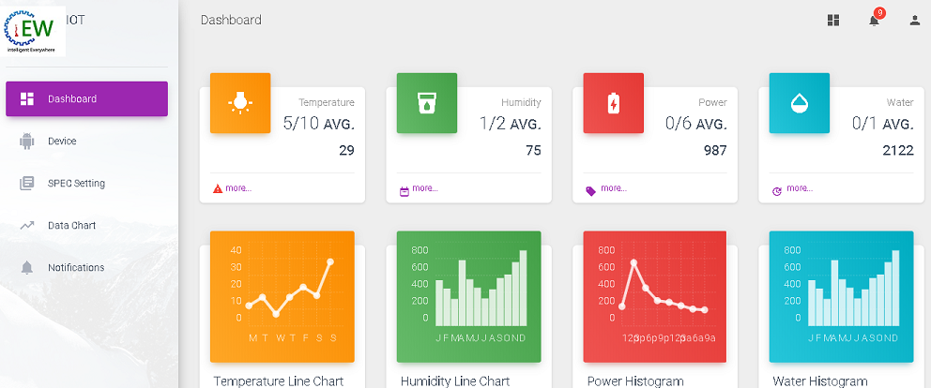

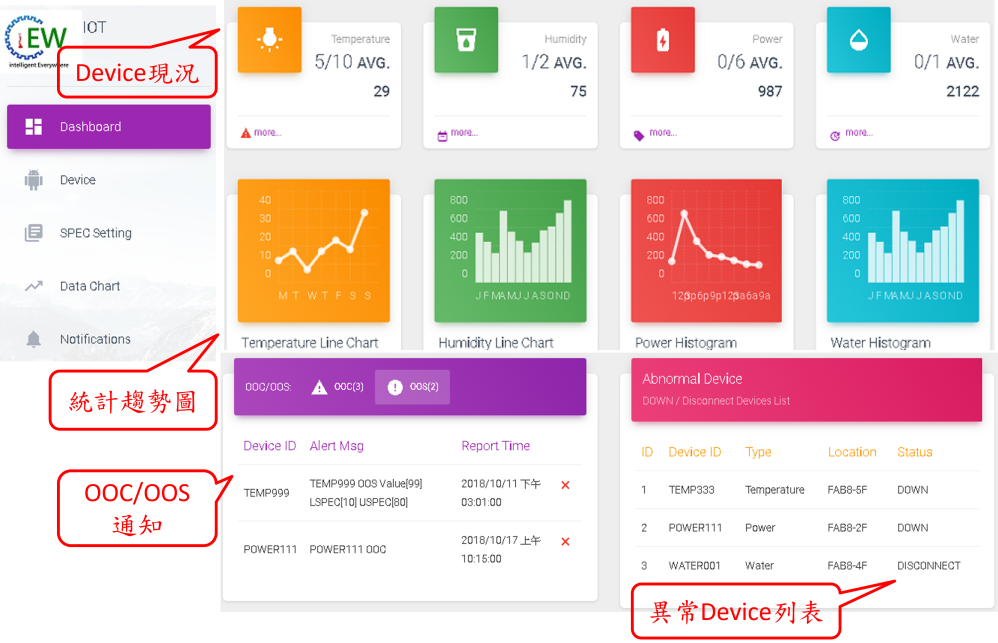

DashBoard
Device看板,狀態
Summary報表
Device
Device管理
SPEC Setting
設定規格上下限
Data Chart
Device上報資料畫Chart
Raw Data查詢
Notifications
Device Alarm通知管理
可提供軟體客制化需求
